This product is a combination package for the shipment of temperature sensitive infectious specimens and biological substances (all risk groups) and the shipment of temperature sensitive of non-hazardous materials.
UN specification packaging, 95 kPa independently tested and approved.
Description
This product is a combination package for the shipment of temperature sensitive infectious specimens and biological substances (Category A and Category B) and the shipment of temperature sensitive of non-hazardous materials.
Through the use of patent pending phase change technology the ultra-freeze MAX transportation package will maintain a temperature range of -80°C to -20°C for a period of 96 hours. This product will also provide a temperature below 0°C for 120+ hours. Our patent pending product design and innovative Purple-Ice coolant solution offers proven specimen protection. With no dry ice required the ultra-freeze MAX may be transported by airfreight as non-hazardous cargo resulting in significant cost savings.
UN specification packaging, 95 kPa independently tested and approved.

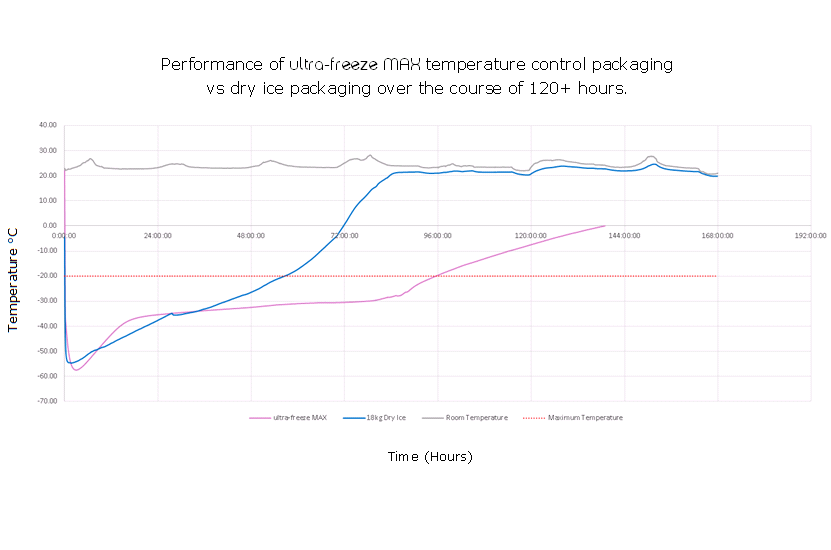

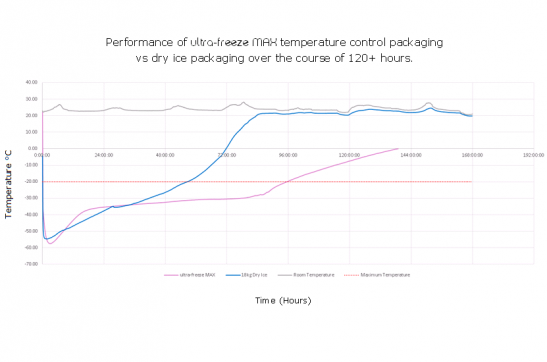

Purple-Ice coolant technology is non-toxic and completely biodegradable. Please view product gallery for temperature performance graph.
To order this product please contact your local distributor here.
Product Code | Product Description |
ULTFRZC1MAX | ultra-freeze MAX |
Specifications

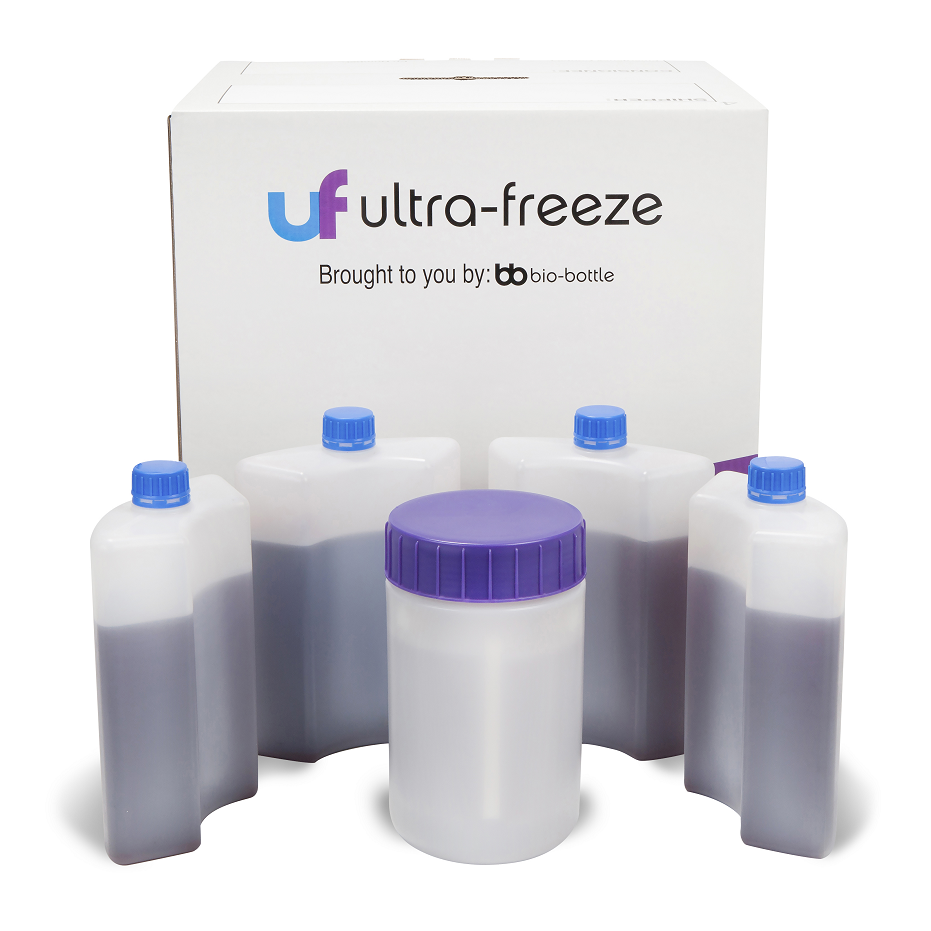

Components:
- Fiberboard outer carton – 500 x 500 x 500 mm (Length x Width x Height)
- ultra-freeze Plus bottle – 95 kPa independently tested and approved
- Capacity: 1.0 L
- Opening: 110 mm tapering to 75 mm
- Diameter: 150 mm
- Height: 245 mm
- Weight: 2.04 kg
- High density polystyrene inner package support
- 4 x Purple-Ice phase change bricks
- Twin diagnostic label (Class 6.2 Infectious Substance and UN3373 labels)
- Bubble bag
- Absorbent pad
Markings on this fiberboard outer carton include:
- UN specification mark
- Shipper and Consignee address
- Emergency contact
- Packing instructions
- Orientation arrows
Complete weight of single assembled unit: 16.06 kg
Assembly: Assembled
Technical Information
UN Specification Mark: 4GU/Class 6.2
Country of Origin: New Zealand
Regulatory Agency: ICAO
Regulatory Standard: PI 620
Packaging Certification: Click here to contact our head office for copy of packaging certification.
Promotional flyer – Click here to view/download the ultra-freeze MAX promotional flyer.
