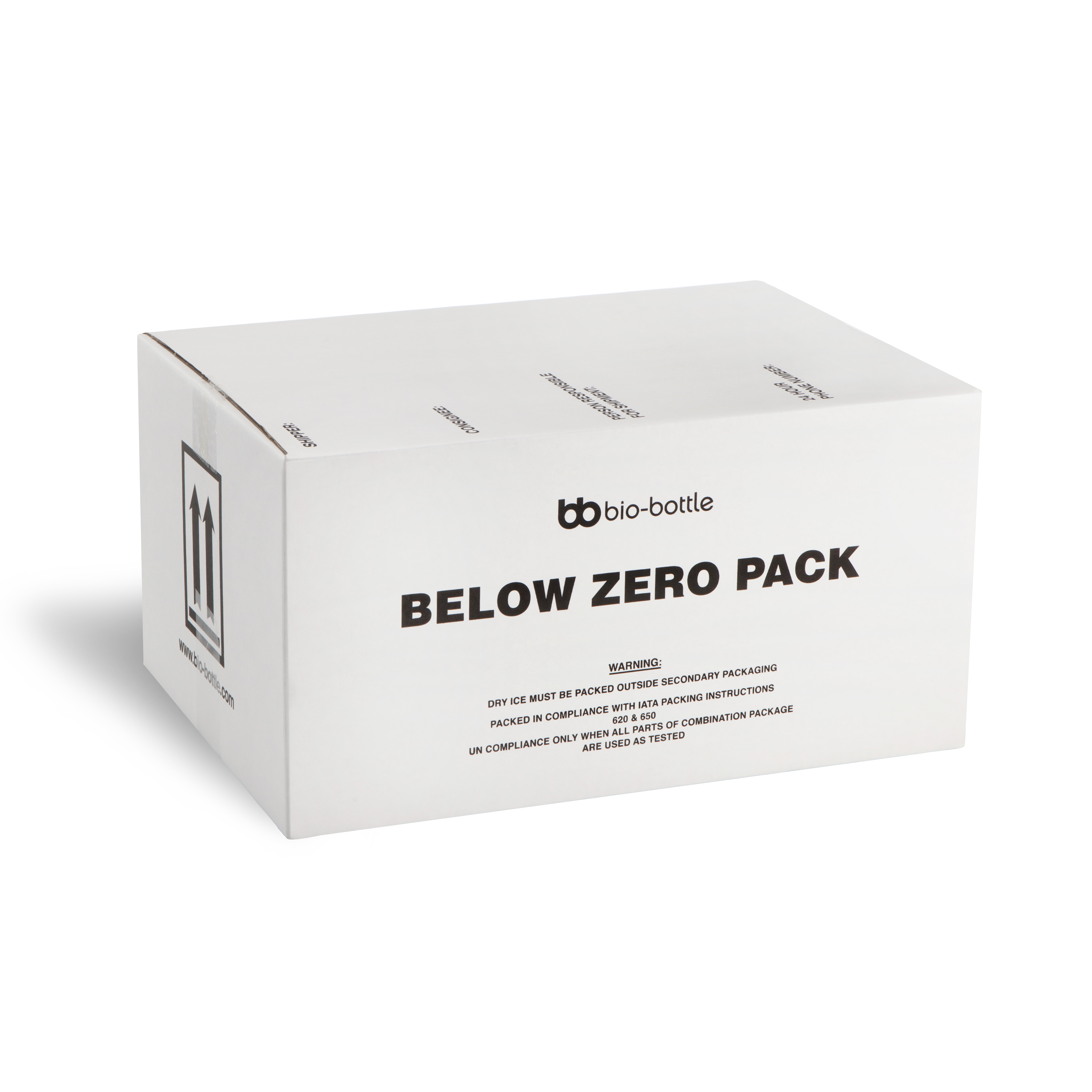

below-zero Complete without Orange bio-bottle

This product is for the shipment of materials requiring dry ice packaging.

UN specification packaging. Combination with the Orange bio-bottle (OB1) renders this product PI 620 compliant.

Add to quote
SKU: BZOW1 Category:

Description

This below-zero product is for the shipment of materials requiring dry ice packaging.

UN specification packaging. Combination with the Orange bio-bottle (OB1) renders this product PI 620 compliant.

To order this product please contact your local distributor here.

Product Code Product Description
BZOW1 below-zero Complete without Orange bio-bottle



Specifications

Components:

  • Fiberboard outer carton
    • External dimensions – 426 x 296 x 224 mm (Length x Width x Height)
  • Polystyrene bin
    • Internal dimensions – 382 x 252 x 150 mm (Length x Width x Height)
    • External dimensions – 423 x 295 x 197 mm (Length x Width x Height)

Markings on this fiberboard outer carton include:

  • UN specification mark
  • UN 3373 / Biological Substance Category B label
  • Class 9 / UN 1845 DRY ICE label
  • Shipper and Consignee address
  • 24 hour phone number
  • Orientation arrows

Assembly: Assembled

Technical Information

UN Specification Mark: 4GU/Class 6.2
Combination with the Orange bio-bottle (OB1) renders this product PI620 compliant.

Dry ice: up to 11 kg of dry ice
Transit time frame: keeps specimens frozen for up to 72 hours

Country of Origin: New Zealand

Regulatory Agency: ICAO
Regulatory Standard: PI 620

Packaging Certification: Click here to contact our head office for copy of packaging certification.
